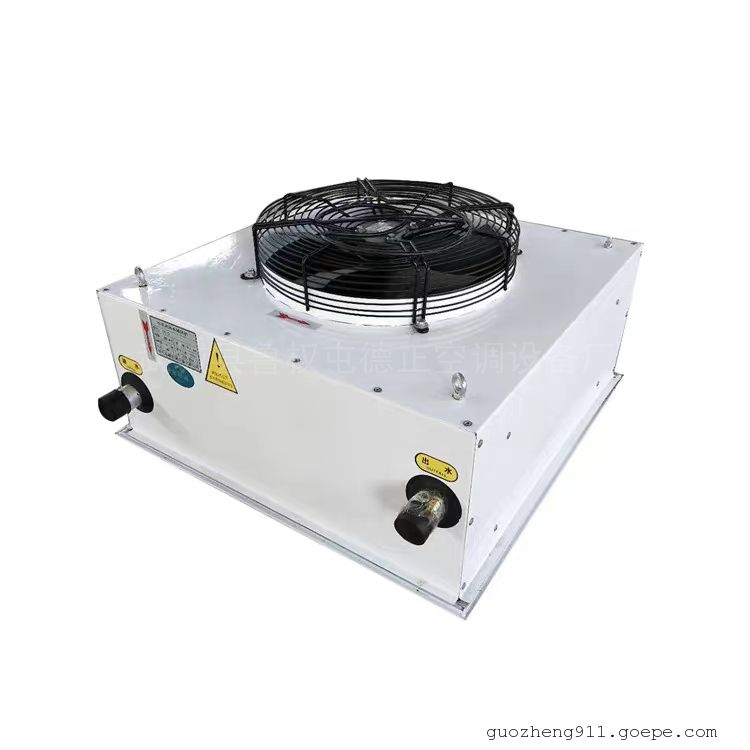

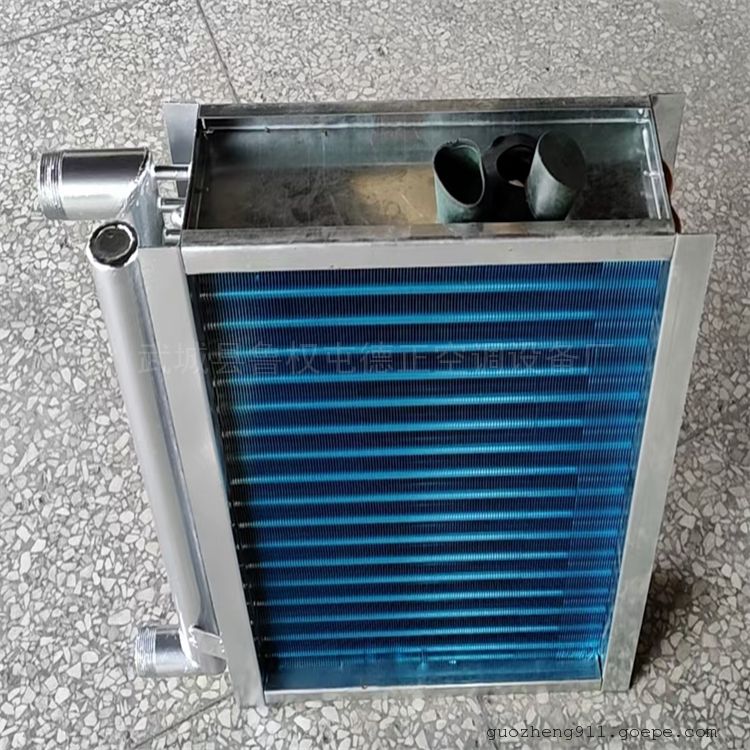

S324 steam Q hot water GS cold water TS heater copper tube aluminum fin heater drying radiator

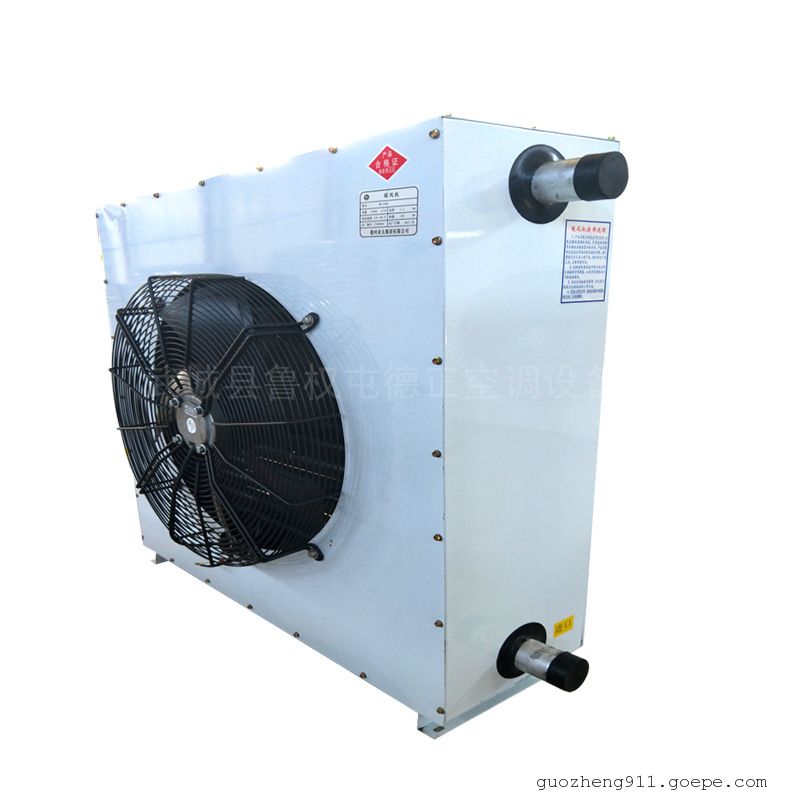

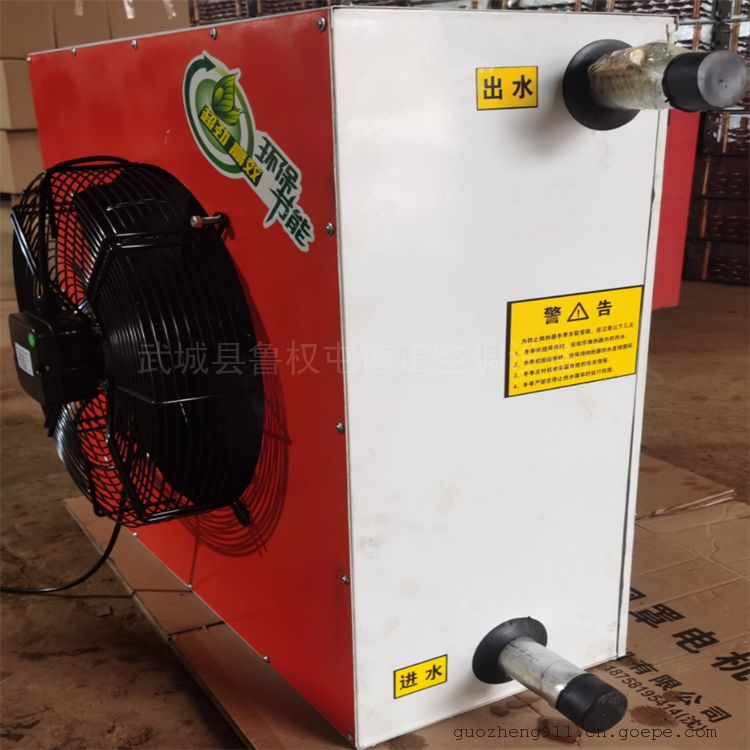

　I. Overview of GS heater

1.GS heater consists of steel radiator, fan and motor;

2. Steel radiator adoptsΦ 22× 2 (mm) seamless steel pipe around 16× 0.5 (mm) spiral corrugated fins, high pressure, corrosion resistance and good heat transfer effect;

3.GS heater has simple structure, small size, light weight, convenient installation and low power consumption;

4.GS type heater is suitable for heating, ventilation, drying, dehumidification, etc. in all kinds of large and medium-sized spaces with hot water as heat medium;

5.GS type heater model description: 4GS

4— Axial Ventilation No.

GS— steel heater with hot water as heat medium

II. Structure and installation size of GS heater




type specification		4GS	5GS	7GS	8GS
Radiator radiating area m ²		14.76	27.6	45.9	66.5
Fan model		YWF4D-350	YW4D-450	YWF4D-550	YWF4D-630
Electric power (KW)		0.125	0.252	0.62	1.1
advocate to outer shape and quiet install ruler small （mm）	C	500	670	840	1000
	B	690	690	710	850
	A	498	668	838	998
	a	250	335	420	500
	b	413	413	518	544
	c	596	766	936	1096
	Φ	410	510	610	710
	G″	1″	1¼″	1½″	1½″
Weight (Kg)		82	139	229	312


　　1. The radiator tubes of GS heater are arranged in four rows and staggered rows;

　　2. The shutter opening of GS heater can be adjusted to obtain suitable airflow.

III. Technical parameters of GS heater


type specification		4GS	5GS	7GS	8GS
Standard air volume (m³/h)		1500	3180	6600	8500
Average wind speed (m/s)		2.3	2.3	3.0	2.6
GS heater at different hot water temperatures (℃), when the inlet air temperature is 15℃, heat dissipation Kcal and outlet air temperature ℃ (heat dissipation/outlet air temperature)	80℃	11800/45.5	22700/42.3	39800/38.2	56000/40.7
	90℃	13500/50.5	26200/46.5	42900/44.4	64400/43.8
	110℃		33200/55.0	50800/44.0	75200/49.9
	130℃		43200/61.0	61400/50.9	91000/57.0
Normal operating noise (dB)		56	60	70	74


IV. Installation and use of hot water heater:



　　1.GS hot water heater can be installed on the wall structure;

　　2. Check the integrity of the heater before installation;

　　3.GS hot water warm air return pipe should be equipped with circulating hot water pump;

　　4. The motor wiring shall enable the fan impeller to rotate in the direction indicated by the rotation plate;

　　5.GS hot water heater before use, should carefully check the fastening of each connection, if loose, should be tightened immediately;

　　6. Hot water warm air before each work, to exhaust the mixed gas in the radiator, preheating 5-10 minutes before air supply work;

　　7.GS hot water warm air after the heating season, should make the radiator filled with water;

　　8. Hot water heater must be kept clean, compressed air can be used to blow heat exchanger fins and other parts of the dust;

　　9.GS hot water heater after 2-3 years of work, should immediately clean the water pipe cavity of the heat exchanger, available chemical methods to remove scale;

　　10. Hot water heater can also be produced into explosion-proof hot water heater according to user requirements;

　　11. Note to ordering: GS hot water heater interface can be connected to the same side, different sides, up and down according to user requirements.
I. Overview
　　Q type steam heater consists of pipeline axial fan and radiator, S324 type steam Q hot water GS cold water heater copper tube aluminum fin hot air dryer radiator When the air contains flammable and explosive gases, it needs to be equipped with explosion-proof axial fan, widely used in various types of workshops and large buildings heating and ventilation.

　　1. Q type steam heater heating medium is steam;

　　2. Radiator finned tube is made of 22*2 seamless steel pipe wrapped around 16*0.5 steel sheet, good heat transfer effect, high pressure;

　　3.Q-type steam heater absorbs foreign advanced technology and manufacturing technology, small size, easy installation, energy saving, low noise;

　　4.Q type steam heater Model description: 5Q

　　5--Axial fan No.

　　Q--Steam heater

Second, the main performance parameters table:


type specification		4Q	5Q	7Q	8Q
Standard air volume (m ³/h)		2100	4150	7170	10100
Average wind speed (m/s)		2.85	3	3.24	3.1
Q type heater under different steam pressure (MPa), when the inlet air temperature is 15℃, heat dissipation KCal and outlet air temperature ℃ (heat dissipation/outlet air temperature) S324 type steam Q hot water GS cold water TS heater copper tube aluminum fin heater drying radiator	0.1	20900/54.9	35100/54.9	53600/51.7	92500/56.3
	0.2	23450/60.0	38200/60.0	60500/56.4	104000/61.5
	0.3	25600/63.3	41700/63.8	65500/60.0	113000/65.5
	0.4	27400/66.8	44200/67.0	75700/62.7	120000/68.6
Normal operating noise (dB)		56	65	70	74


III. Installation size:




type specification		4Q	5Q	7Q	8Q
Radiator radiating area m ²		11.07	20.03	34.43	49.88
Fan model		SF3.5-4	SF4-4	SF5-4	SF6-6
Electric power (kw)		0.25	0.55	0.75	1.1
outer shape and quiet install ruler small （mm）	A	500	670	840	1000
	B	500	670	840	1000
	C	450	620	790	960
	L	656	826	996	1156
	a	550	550	550	700
	b	145	230	315	400
	Φ	450	550	650	750
	G	1″	1¼″	1½″	2″
Weight (Kg)		68	109	187	255


IV. Installation, use and maintenance



　　Q-type steam heaters can be installed on wall structural members.
 S324   steam Q hot water GS cold water TS heater copper tube aluminum fin heater drying radiator
　　1. Check the integrity of steam heater before installation.

　　2. Condensate eliminator (steam trap) should be installed on condensate outlet pipe of Q-type steam heater.

　　3. The rated voltage of motor wiring is 380V, and the fan impeller should be rotated according to the direction indicated by the rotation label.

　　4, Q-type steam heater before use, should carefully check the fastening of each connection, if loose, should be tightened immediately.

　　5. Before the heater works, exhaust the mixed gas in the air heater and preheat it for 5-10 minutes before supplying air.

　　6. After the heater stops working in winter, the condensed water in the air heater should be drained to avoid freezing.

　　7, Q-type steam heater must be kept clean, compressed air can be used to blow off the dust fin radiator and other parts.

　　8. After 2-3 years of operation of the heater, the inner cavity of the water pipe of the fin radiator should be removed immediately, and the scale can be removed chemically.

　　Ordering instructions: Q type steam heater heating medium interface can be connected according to the requirements of the same side, different side connection, up and down can be connected. Connection options: threaded connection or flange connection.

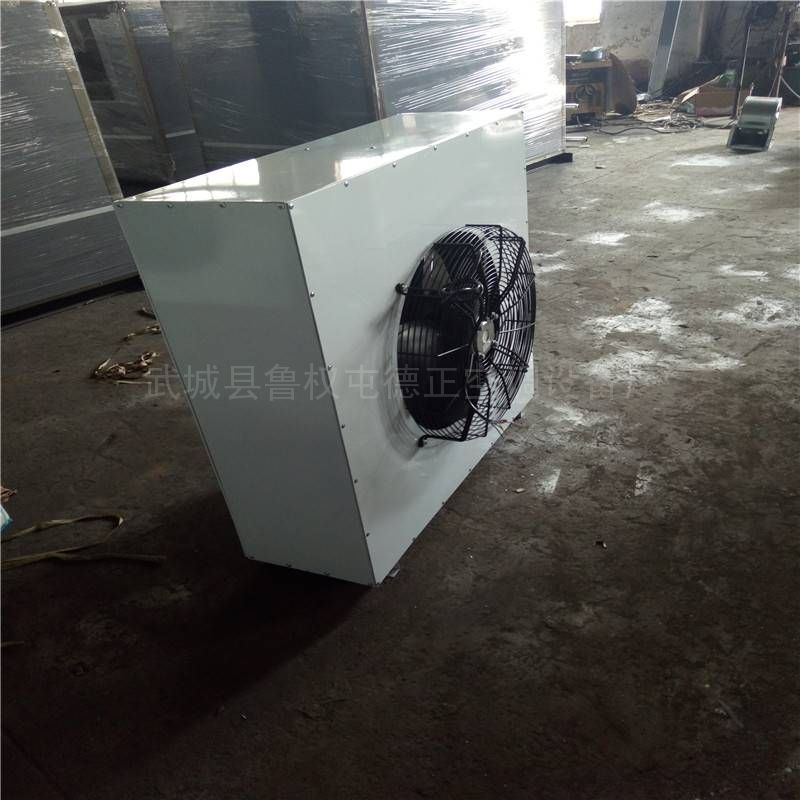

I. Overview
　　1.ZQ steam heater is a new product successfully developed by our company on the basis of traditional Q heater by absorbing advanced foreign technology and manufacturing technology;S324 steam Q hot water GS cold water TS heater copper tube aluminum fin heater drying radiator

　　2. The steam heater is composed of low noise outer rotor axial fan, steel finned tube radiator and exquisite louvers.

　　3.ZQ steam heater has compact and reasonable structure, novel and beautiful appearance;

　　4. The heat medium of the steam heater is saturated steam;

　　5.ZQ steam heater is suitable for circulating heating of large buildings such as general workshops, workshops and greenhouses.

II. Main performance and parameters


item of model number	Wind Volume (m3/h)	Vapor pressure (MPa)	Heat dissipation (KW)	Condensation (kg/h)	Inlet air temperature (℃)	Outlet air temperature (℃)	Noise (dB)	Wind speed (m/s)
ZQ-40	2060	0.1	24.3	37.3	15	54	56	3.2
		0.2	27.2	41.8		60
		0.3	29.7	45.7		63
		0.4	31.8	48.9		66
ZQ-50	4150	0.1	40.8	62.6	15	54	60	3.45
		0.2	44.4	68.2		60
		0.3	48.4	74.4		63
		0.4	51.4	78.9		66
ZQ-70	7170	0.1	62.3	95.7	15	51	70	3.79
		0.2	70.3	108		56
		0.3	76.1	116.9		60
		0.4	88	135.1		62
ZQ-80	10100	0.1	107.5	165.1	15	56	74	4.1
		0.2	120.9	185.7		61
		0.3	131.3	201.7		65
		0.4	139.5	214.2		68


III. Installation size diagram


　

item of model number	A	B	C	H	L	Motor power (W)	Weight (kg)	flange (DN)
ZQ-40	500	500	250	620	~420	125	65	25
ZQ-50	670	670	250	800	~440	252	90	32
ZQ-70	840	840	280	970	~450	620	150	40
ZQ-80	1000	1000	280	1130	~480	1100	200	50

IV. Installation, use and maintenance

　　1, ZQ steam heater can be installed in the wall structure.

　　2. Please check the integrity of the heater before installation.

　　3, ZQ steam heater condensate outlet pipe to install condensate eliminator (trap).

　　4. The rated voltage of motor wiring is 380V, and the fan impeller should be rotated according to the direction indicated by the rotation label.

　　5, ZQ steam heater before use, should carefully check the fastening of each connection, if loose, should be tightened immediately.

　　6. Before the heater works, exhaust the mixed gas in the air heater and preheat it for 5-10 minutes before supplying air.

　　7. After the heater stops working in winter, the condensed water in the air heater should be drained to avoid freezing.

　　8. ZQ steam heater must be kept clean, and compressed air can be used to blow dust from fin radiator and other parts.

　　9. After 2-3 years of operation of the heater, the inner cavity of the water pipe of the fin radiator should be removed immediately, and the scale can be removed chemically.

　　10. Ordering instructions: ZQ steam heater heating medium interface can be connected on the same side, different sides, up and down according to requirements.
